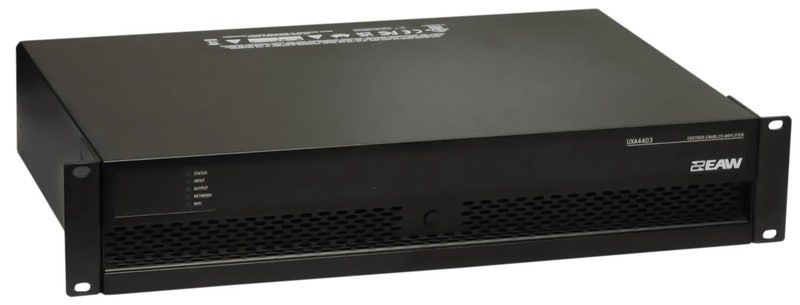

EAW UXA4403
Artikelnummer 90215874 channel - 2U format power amplifier that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers.
EAW UXA4403
UXA Installation Series amplifiers offer an appropriate power point to support many of EAW’s installation products. Each amplifier is shipped with Greyboxes loaded for all applicable EAW loudspeakers.
With the large catalog of EAW loudspeakers, it’s often times difficult to find the right amp pairing. With the introduction of UXA installation amplifiers, there is now a model and configuration readily available to make accurately specifying projects both timely and straightforward. UXA Installation amplifiers are based on Pascal technology. With robust electronics and support, these amps are built to last for years while providing high quality coverage for a variety of applications.
- Shipped with rack “ears” for standard equipment rack
- 4 inputs & 4 outputs.
- Pairs seamlessly with EAW installation loudspeakers.
- Optional Sync Functionality by S/PDIF linking to multiple amps.
- Connect wirelessly or direct to the amplifier via a web page interface.
- Configurable GPIO for additional control.
- Safety and EMC Certified. Compliant to ErP & EnergySTAR.
- Channels 4
- Output power @ 2.7ohms 4 x 1200W
- Output power @ 4ohms 4 x 800W
- 2 X 2500W (BTL)
- Output Power @ 8ohms 4 x 400W
- Output Power 70V 2 x 1200W (BTL)
- Output Power 100V 2 x 1500W (BTL)
- Total System Power 3200W/5000W
- Power Consumption 700W
- Dimensions: 88 x 440 x 320 mm
- Weight: 7.3 kg
