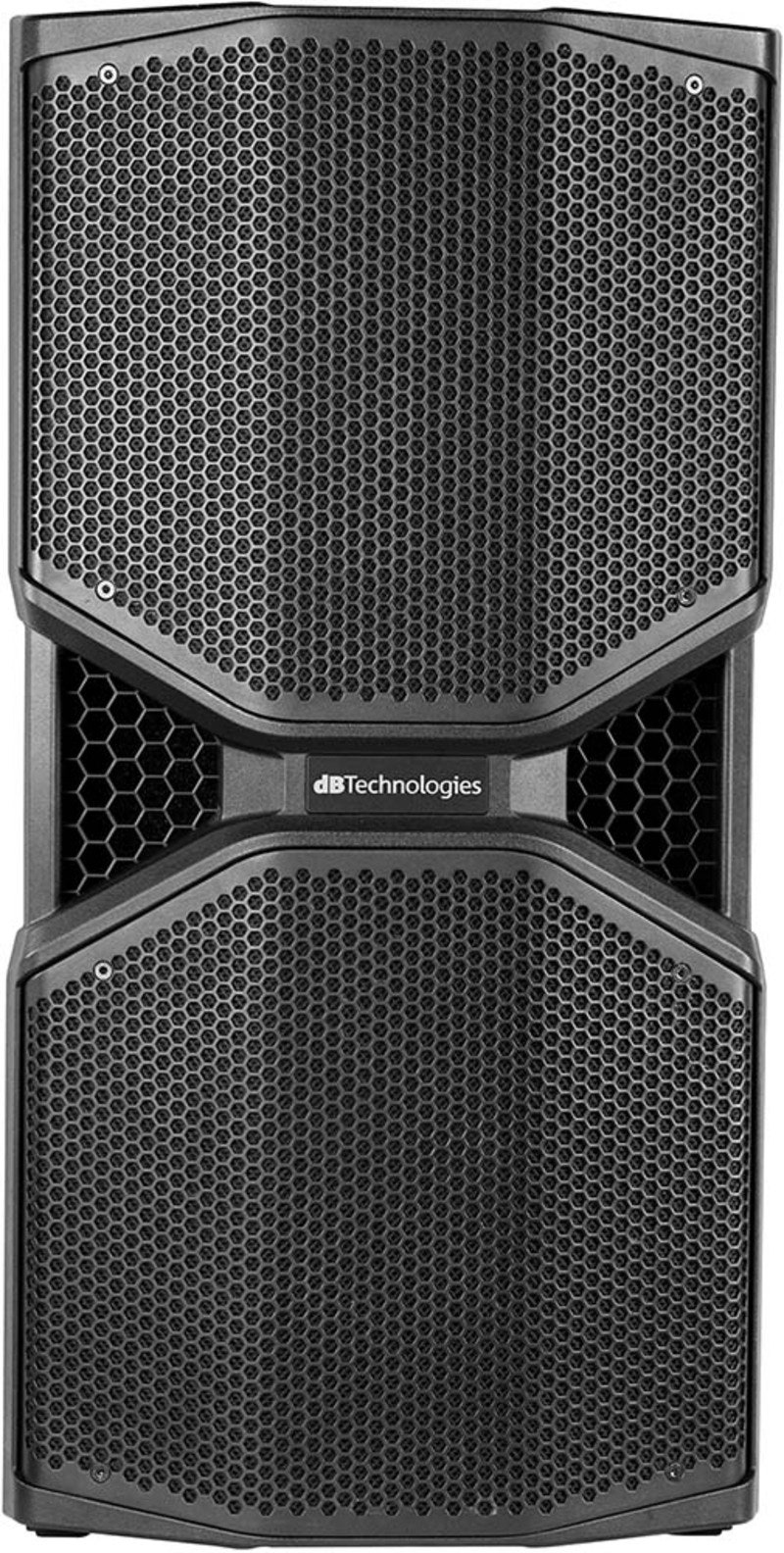

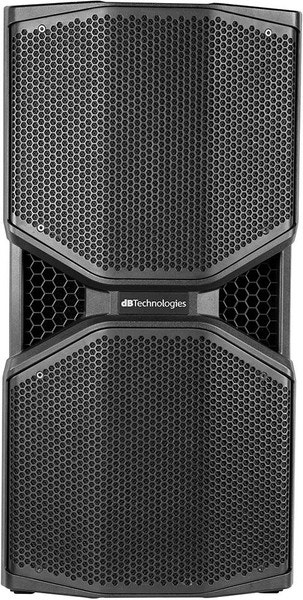

dB Technologies OPERA REEVO 212

dB Technologies OPERA REEVO 212

OPERA REEVO 212 deliver an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.

The Quasi 3-way configuration delivers a vigorous yet pristine sound. This bold acoustic design is in-fact unparalled in its category, inspired by dBTechnologies touring series, marks a clear step-up In the longest running and most appreciated dBTechnologies active speaker series of all times.

Opera Reevo translates the mix in an impeccable way, adapting the speaker to complex musical material especially when rich in the midrange region, where separation and clarity can really make a difference in the outcome of any performance.

This is granted by the coaxial acoustic design, featuring a front Integrated HF horn with diamond-shaped cutouts with the aim of rendering comb filtering-free high frequency reproduction, and at the same time of improving the upper woofer’s efficiency.

Another phase plug enhances the lower woofer efficiency: this acoustic device greatly improves the transient response and overall behavior of this transducer.

Low noise reflex ports are integrated in the front molding. The honeycomb structure inside the ports helps reducing wind turbulence caused by the high airflow of this high SPL powerhouse.

Equipped with a Class-D Digipro G2 amplifier which delivers an impressive 1050 W RMS and 2100 W Peak power, and features advanced DSP processing where FIR linear phase filters allow the systems to achieve a coherent audio performance, rendering an uniform and crystal-clear sound. Moreover, Opera Reevo offers factory-tailored voicing presets to adapt to multiple scenarios, including when in need of a wedge stage monitor or a completely standalone full-range PA system.

Technical Data

• Speaker Type: Quasi 3-Way Active Speaker
• Frequency Response: [-10dB] 48 - 20000 Hz
• Max SPL: 133 dB
• HF: 1" Exit CD, 1.75" v.c.
• Type HF: Compression driver
• Horizontal Directivity: 100°
• Vertical Directivity: 80°
• Horn: Asymmetrical Horn
• LF: 2x 12" Neo, 2.5" v.c.
• Amp Technology: Digipro G2 with SMPS
• Amp Class: Class D
• RMS Power: 1050 W (525W + 525W)
• Peak Power: 2100 W (1050W + 1050W)
• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 KHz
• CrossOver Frequency: 1260 Hz
• Signal Input: 1x Combo (XLR/Jack 6.3 mm) Line
• Signal Output: 1x XLR Male (True link)
• Controls: Gain (rotary)
• Preset: (Flat, Playback, Wedge)
• Housing: Polypropylene
• Grille: Full grille
• Handles: 1 on left Side, 1 on Top
• Rigging Points: 2x M10 on Top + 1x M10 on Back
• Pole Mount: 36 mm
• Width: 345 mm
• Height: 690 mm
• Depth: 376 mm
• Weight: 20,4 kg
