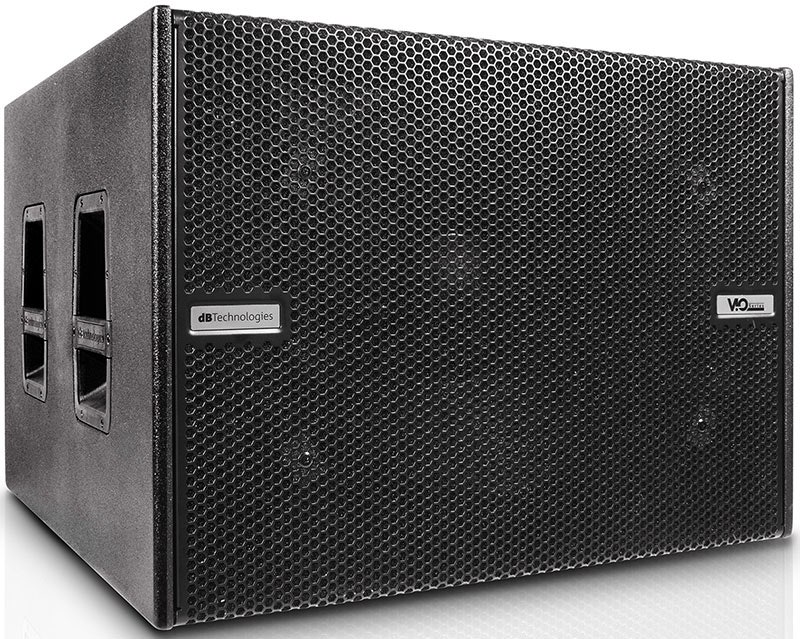

dB Technologies VIO S118R
Artikelnummer 2860110Active subwoofer equipped with a 18" bass reflex woofer is designed to complement the VIO line array and point source systems in the low frequencies.
dB Technologies VIO S118R
The system’s acoustic engine is driven by a Digipro G4® 1600W Class D amplifier, equipped with PFC (Power Factor Correction) and SMPS which make the cabinet highly resistant to line voltage fluctuations. Digipro G4 preamplifier features a slot module, equipped with a RDNet expansion card as default, allowing system monitoring and control via Aurora Net. Furthermore, the system is ready for Audinate Dante™ Expansion Card allowing integration in a digital audio network.The amplifier also allows users to run a real-time test on electronics and transducers, both remotely via Aurora Net, or directly on the amplifier module. VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary. The on-board cardioid preset processes the backward sub in inverted stack cardioid configurations, to achieve the best possible cancellation on the rear side automatically.
Technical Data
- Speaker Type: Active Bass Reflex Subwoofer
- Frequency Response: [- 6 dB] 35 Hz to Cut Freq (X-Over Dependent)
- Frequency Response: [- 10 dB] 32 Hz
- Max SPL: 139 dB
- LF: 1x18"
- Voice Coil: LF4 "
- Directivity: Omnidirectional
- Amp Technology: Digipro® G4
- Amp Class: Class D
- RMS Power: 1600 W
- Peak Power: 3200 W
- Cooling: Convection + Internal Fan
- Power Supply: Full-range PSU with PFC
- Controller: DSP 32 Bit
- AD/DA Converter: 24 bit 96 kHz
- Delay Option: 0- 9.9 ms | steps of 0.1 ms [on-board], 0 - 62 ms [via RDNet]
- Crossover Frequency: LF-HFSelectable 60-110Hz + Full range
- LF-Xover out slope: 24 dB/Octave
- Signal Input: 1xXLR balanced
- Signal Output: 1x XLR balanced (link or X-over)
- 1xRJ45 LINK (RDNet)
- Expansion CardRDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
- Dante card [optional]
- Mains Connections: 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out
- Controls: 1x Input Attenuation Rotary Switch, 1x Rotary Encoder (Delay 9.9 ms), 1x Polarity Inversion Switch (0° or 180°), 1x Cardioid Mode Switch, 1x X-Over Freq Switch (60-110 Hz + Full Range, 1x System Auto-test
- Housing: Multiplex plywood Polyurea painted
- Handles: 2x Per Side
- Pole Mount: M20 Thread
- Rain cover Included
- Width:720 mm
- Height: 520 mm
- Depth: 695 mm
- Weight: 47 kg
