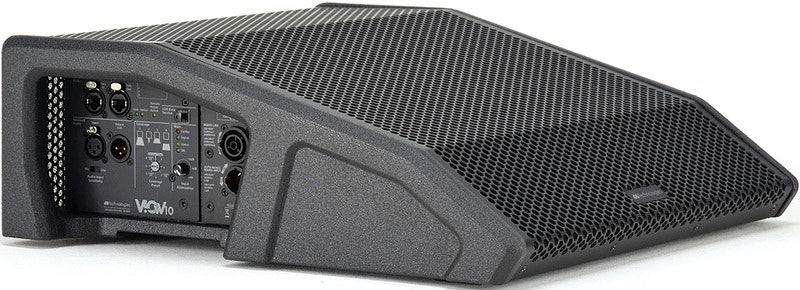

dB Technologies VIO W10

dB Technologies VIO W10

This 2-way wedge is equipped with 4x4” neodymium HF speakers and 1x10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.

Digital Sound Processing allows a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far.

VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.

Technical Data

• Speaker Type: 2-Way Active Wedge Monitor
• Usable Bandwith: [- 10 dB] 58 - 15,000 Hz
• Frequency Response: [- 6 dB] 68 - 14,000 Hz
• Max SPL: 126 dB
• HF: 4x 4" - 1" v.c. Neodymium
• LF: 1x 10" - 2.5" v.c.
• Horizontal Directivity: Dependent on Focus Preset
• Vertical Directivity: Dependent on Focus Preset
• Amplifier: 400 W RMS Class D Digipro® G3
• Cooling: Convection
• Power Supply: Auto-range SMPS
• Controller: DSP 28/56 bit
• Converter: AD/DA24 bit/48 kHz
• Signal Input: 1 x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
• Signal Output: 1xXLR male, 1x RJ45 Link (RDNet)
• Power Socket: 1x PowerCON TRUE1 In, 1xPowerCON TRUE1 Out
• 1x Rotary Encoder (8 presets)
• 1 x Input Sensitivity Encoder
• 1xMic /line switch
• 1x On LED
• 1x Status -LED
• 1x Signal LED
• 1x Limiter LED
• Housing: Wooden cabinet, Polyurea painting
• Handles: 1 on left side
• Width: 450 mm
• Height: 165 mm
• Depth: 480 mm
• Weight: 13.7 kg
