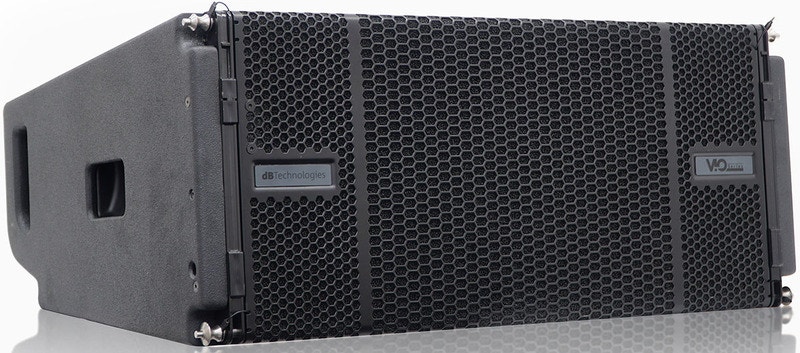

dB Technologies VIO L1610

dB Technologies VIO L1610

VIO L1610 is a three-way active line array system, entirely equipped with neodymium components:
2x10" woofers (2.5” v.c.), providing an extended LF reproduction, interact with a coaxial neodymium component (4” MF plus a 2,5” v.c. HF compression driver) mounted on an exclusively designed waveguide.
This unique coaxial symmetric acoustic design results into the most accurate transient reproduction, which enables VIO L1610 to deliver the most detailed and homogeneous audio performance.
In facts, the coaxial component not only allows an extended low end reproduction of the MF, but guarantees a perfect off-axis coherence alongside with all the benefits coming from woofers' direct radiation, much to the advantage of the system’s headroom.

VIO series' compatibility

Just like any member of VIO family, VIO L1610 has been designed keeping in mind complete compatibility among VIO systems.
Although its remarkable audio performance makes VIO L1610 a powerful yet compact main PA system, both its acoustic and mechanical design makes it the perfect downfill for large VIO L212 systems.
TF-VIO2 adaptor allows to easily rig VIO L1610 modules under a VIO L212 array.

Complete networkability

VIO L1610's amp module Digipro G4 comes with a modular slot for expansion cards: as a default, VIO L1610 is equipped with dBTechnologies RD-Net card for real time remote control via Aurora Net software. Nevertheless, the system is ready for upgrades with Audinate Dante™ protocol for digital audio stream as well as well as real time control purposes.

As a support for networking purposes, each VIO L1610 cabinet is equipped with Near Field Communication (NFC™) system and a frontal LED used to recognize each single module within the remote control software Aurora Net.

Smart Rigging system

VIO L1610 comes with VIO series’ peculiar 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules.The back central rigging strand is equipped with a ring type link allowing user to set the relative splay angles ranging from 1° to 10° thanks to 1 single pin.  Splay angles can be set directly in the dedicated transport cart DT-VIOL210L which houses 4 modules. While lifting up the array, the rigging strand will automatically block the preset angles with no heavy lifting required. The flying frame DRK-210 allows smooth flying operations and system lifting.

Technical Data

• Speaker Type: Symmetric 3-way Active Line Array Module
• Usable Bandwidth: [-10 dB] 56Hz – 20KHz
• Frequency Response: [-6 dB] 60Hz – 17KHZ
• Max SPL: 141 dB
• MF/HF (coaxial): 1x1.4" exit
• Voice Coil MF: 4"
• Voice Coil HF: 2.5"
• Type MF/HF: Neodymium
• LF: 2x10"
• Voice Coil LF: 2.5"
• Type LF: Neodymium
• Horizontal Directivity: 100°
• Vertical Directivity: depends on array size and configuration
• Amp Technology: Digipro G4 full range
• Amp Class: Class-D
• Power RMS: 1600 W
• Peak Power: 3200 W
• Cooling: passive convection + internal fan
• Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
• Preamp technology: Floating Audio input with digital optical isolation
• Amp TechnologyDigipro G4 full range
• Amp ClassClass-D
• Power RMS1600 W
• Peak Power3200 W
• Coolingpassive convection + internal fan
• Power SupplyFull-range SMPS with PFC (100V~-240V~, 50-60Hz)
• Preamp technologyFloating Audio input with digital optical isolation
• DSP: 32 bit 96 KHz audio processor
• Crossover Frequency: 500Hz - 3300 Hz
• Signal Input: 1xXLR fem, Bal.
• Signal Output: 1xXLR male, Bal.
• Network: RDNet Card (1x RJ45 IN 1x RJ45 Link)
• Dante Card: [Optional]
• Power Socket: 1xPowerCon TRUE1 IN, 1xPowerCon TRUE1 Out
• Controls: 1 x Speaker Coupling (7 presets), 1 x High pass filter Rotary Encoder (8 presets), 1 x HF Compensation (8 presets), 1 x System Test Button
• Technologies: NFC and Frontal LED Identification System, 380V Resistant SMPS, IPOS Intelligent Power-On Sequence, Opto-isolated floating pre-amp, System Test, Inclinometer, FIR Fir Filters
• Housing: Multiplex Plywood Polyurea painted
• Handles: 1x side, 2 on back
• Rain Cover Magnetic rubber (included)
• Rigging Points: Integrated 3 point rigging hardware
• Width: 720 mm
• Height: 320 mm
• Depth: 520 mm
• Weight: 31.3 Kg
